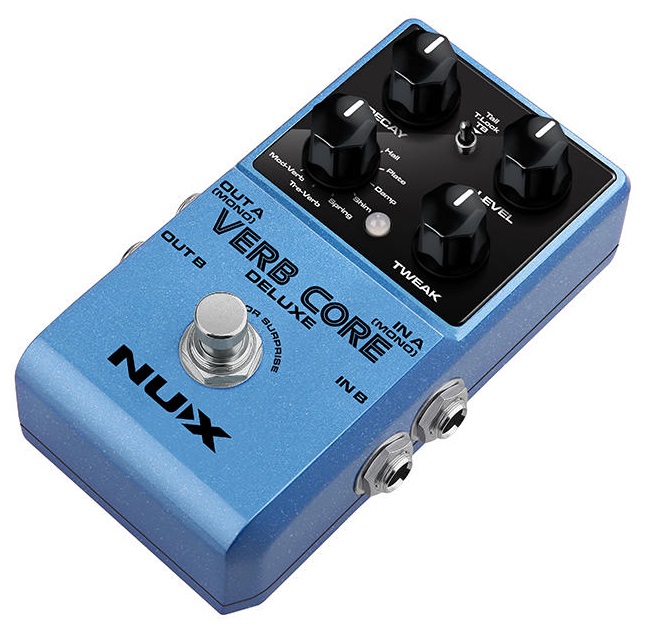

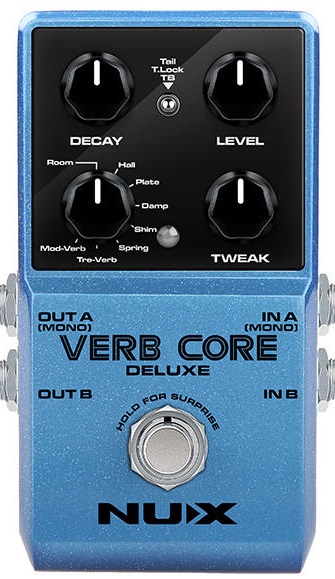

NU-X Verb Core Deluxe – Reverb Pedal

Ambience in Motion

The NUX VERB CORE DELUXE is a reverb pedal with 8 different types including Room, Hall, Plate, Damp, Shim, Spring, Tre-Verb and Mod Verb. You can select the reverb type by using the Type knob.

---



---

Room reverb simulates a smaller acoustic space. In such a room, many reflections are absorbed by soft materials, and the sound is reflected and sustained only by the walls (covered with wallpaper), windows and maybe some furniture. Room reverb is akin to the normal ambience we’re used to hearing in the real world.

---

Hall reverb is based on the legendary Lexicon 224 which was unleashed in 1978. It has a famously lush reverb tail which single-handedly defined the sound of an entire era. A large encompassing reverb with warm, organic decay.

---

Plate reverb was inspired by EMT 140, which made use of a metal plate suspended in a steel frame, that was able to recreate reverberations like those heard in an acoustic space; a renowned studio reverb found on classic recordings.

---

Damp reverb is huge and endless, warm and natural.

---

Shim (shimmer) reverb pitch shifts the reverb up an octave through each feedback loop, creating a haunting and other-worldly sound. This is a unique effect that may open some interesting and experimental sonic options.

---

Spring reverb simulates the drippy and squishy sounding spring tank that was generated in a spring by creating a mechanical oscillation. To achieve a “bouncy” tone, Spring reverb is a solid choice for adding a bottom-heavy dimension. Classic surf reverb; great for Rockabilly too!

---

Kill Dry: This function allows you to get fully proceed signals without any dry signals, so you are able to get pure dry amp sound and pure wet amp sound with paralleled gear chain. Or to reach a new level of ambiance effects if the original mixing is just not enough for your ideas.

---

Features

• 8 reverb types in a compact enclosure.
• Room, Hall, Plate, Damp, Shim, Spring, Tre-Verb, Mod-Verb.
• Freeze function.
• True-bypass or Buffer-bypass(Tails).
• Supports Stereo.
• Kill Dry.
• Low power consumption. (less than 120mA)
• Analog dry signal for low noise and zero latency.

Specifications

• Weight: 270g
• Input Impedance: 1MΩ
• Output Impedance: 1kΩ
• Dynamic Range: 104 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit
• Power: 9V DC(Negative tip, Optional ACD-006A adapter)
• Current Draw: less than 120mA
• Dimensions: 122(L) X 72(W) X 47(H)mm
