LD Systems Dave 8 Roadie – 350 Watt Portable Active PA System

£459.99

1 in stock

Description

PORTABLE ACTIVE PA SYSTEM WITH 3-CHANNEL MIXER

With the DAVE 8 Roadie, LD Systems are successfully implementing their motto “pro audio in motion”. This complete PA system with its powerful 1400-watt (Peak) power amp delivers astounding performance for mobile applications.

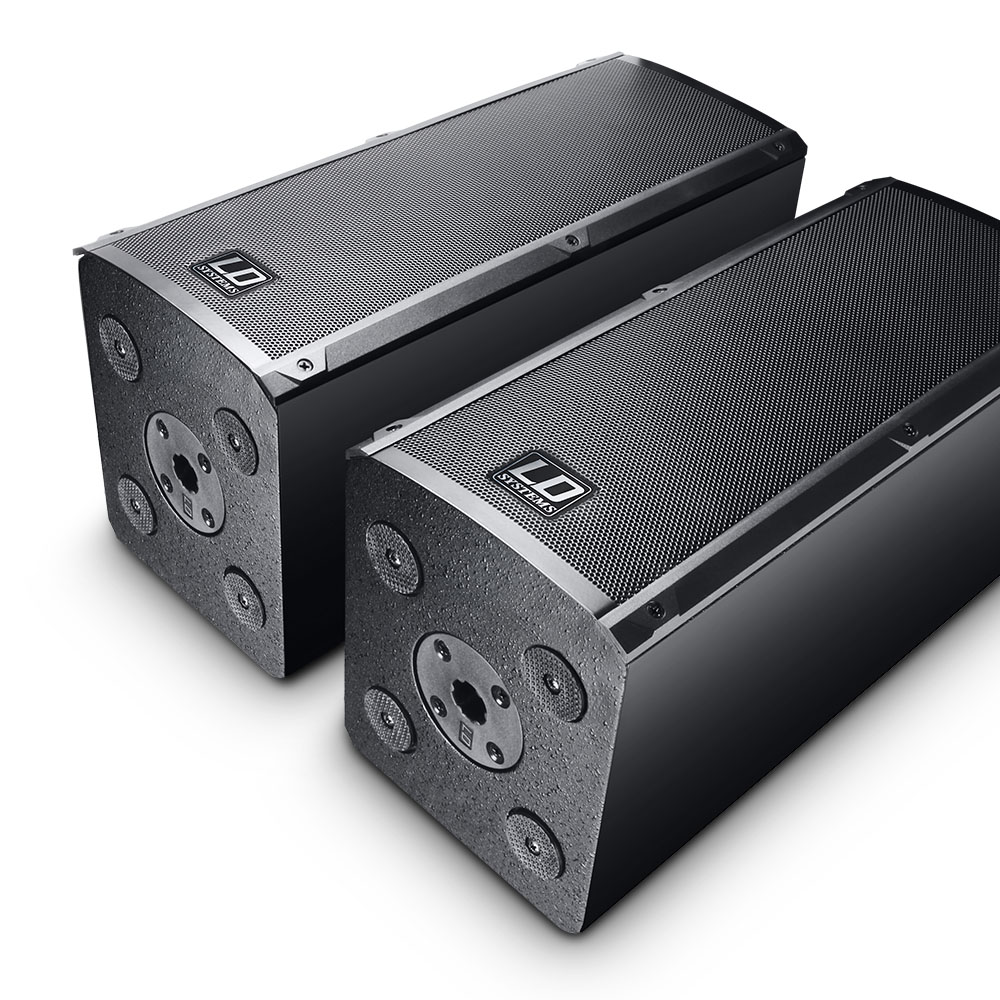

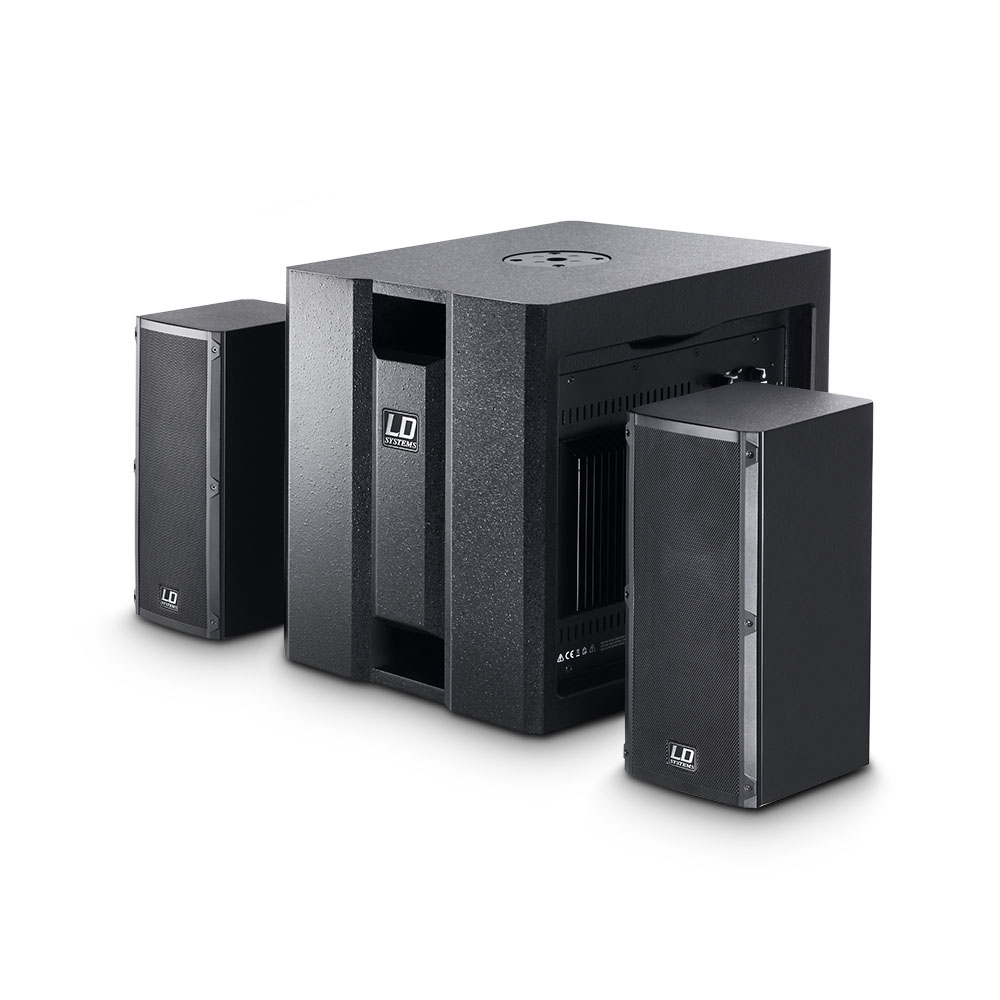

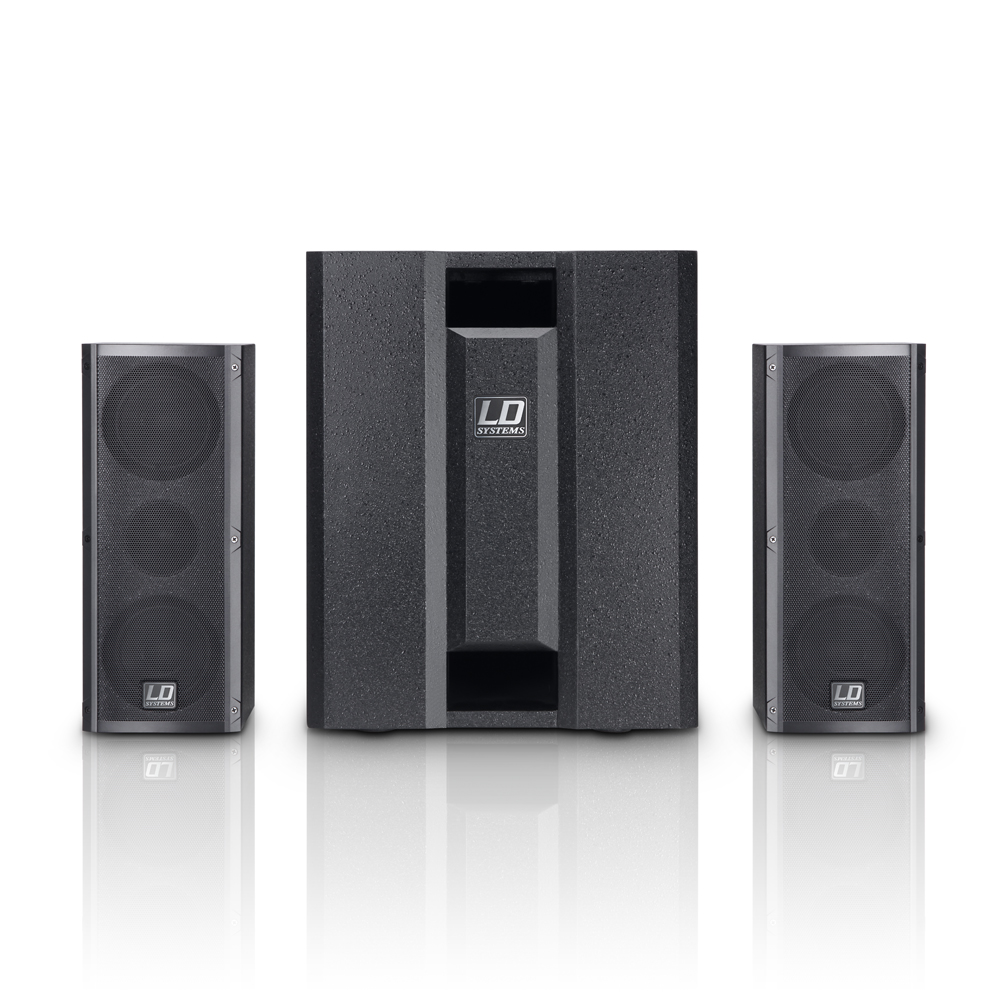

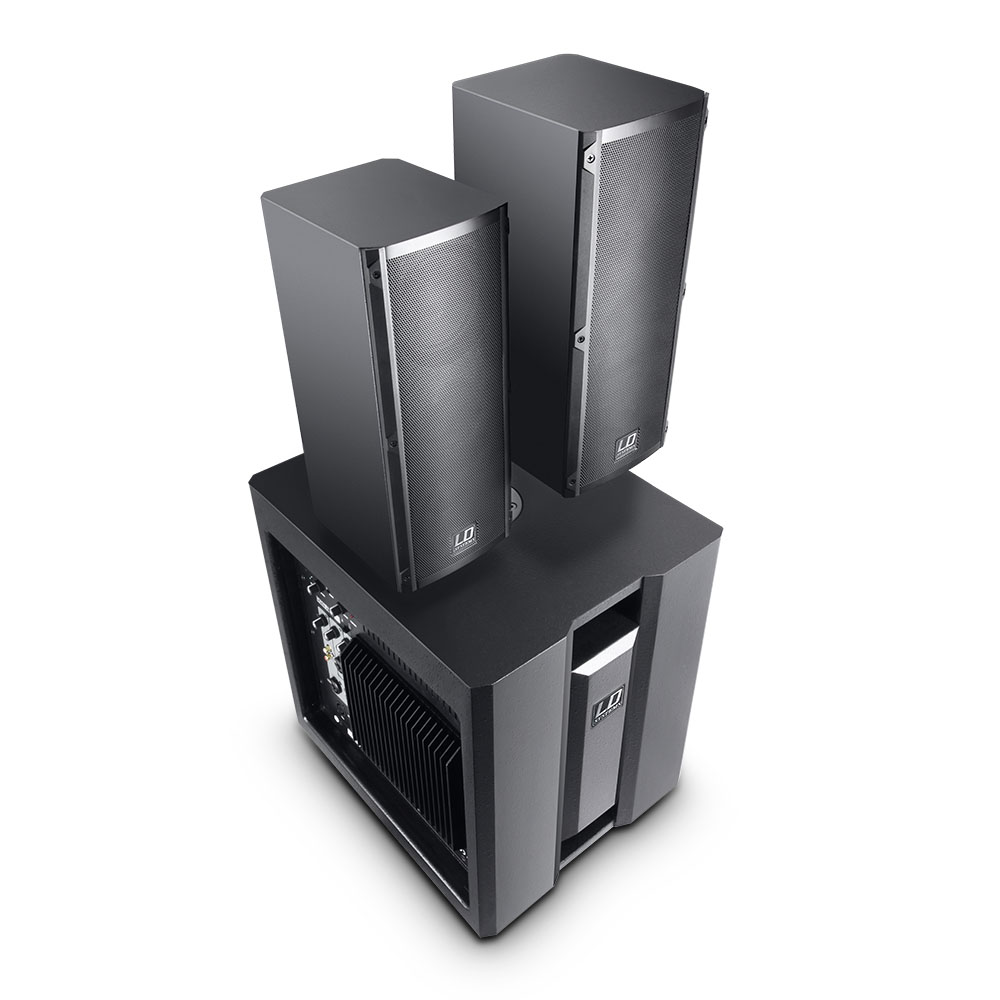

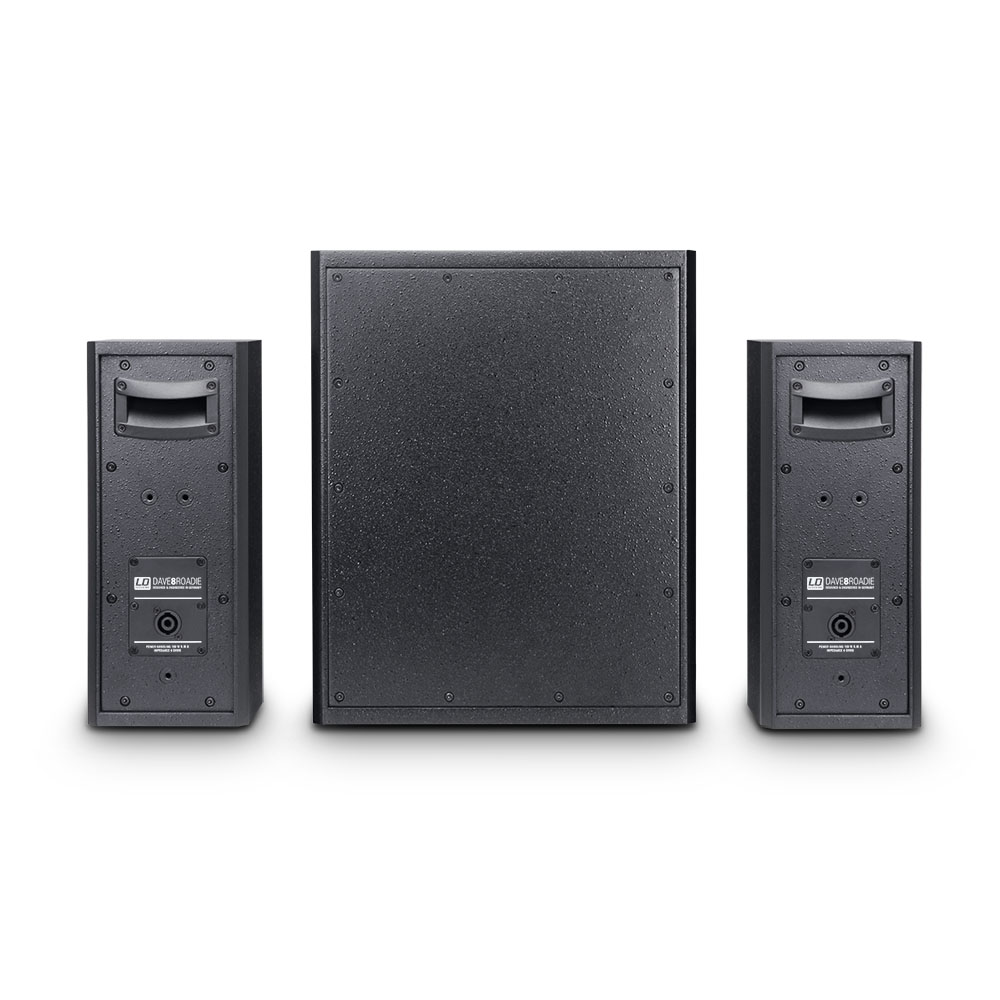

The system is equipped with a high-performance 8″ band-pass subwoofer and two satellite speakers (2 x 4″ + 1″) and was designed as a flexible and portable mini PA system especially for musicians.

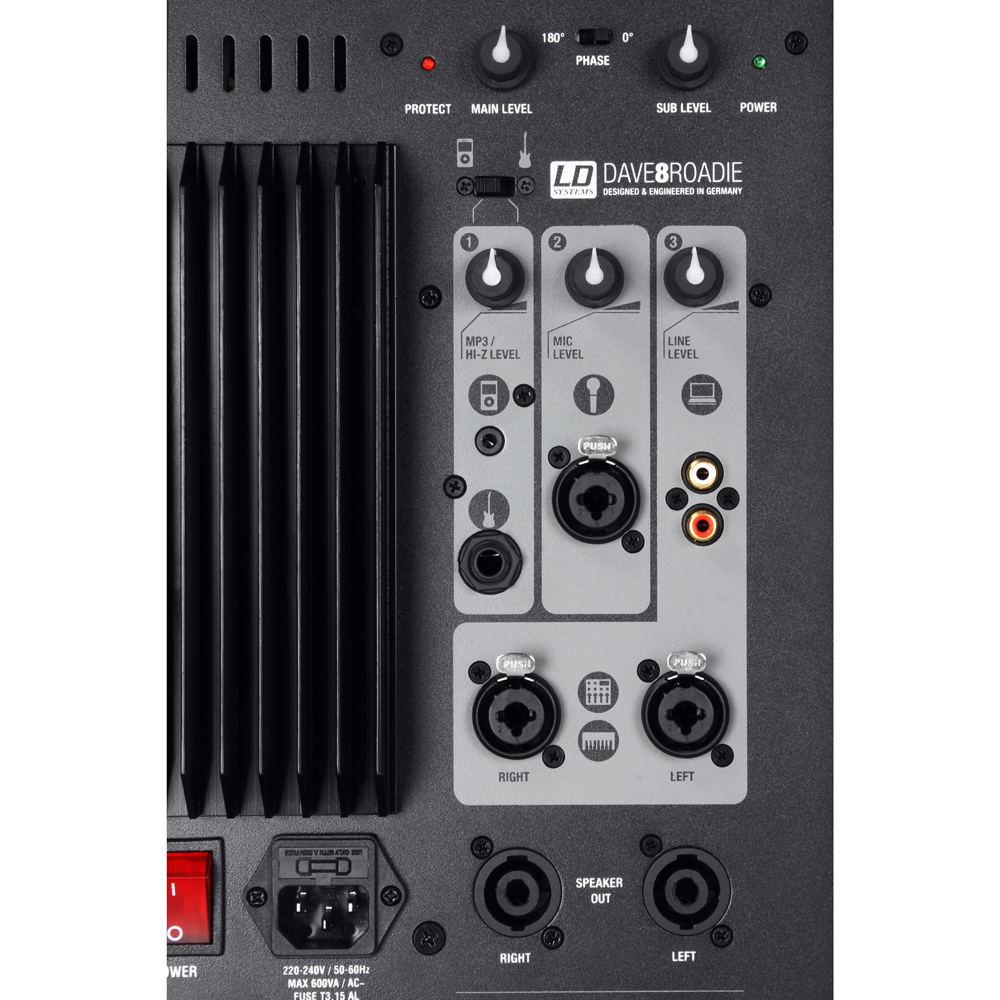

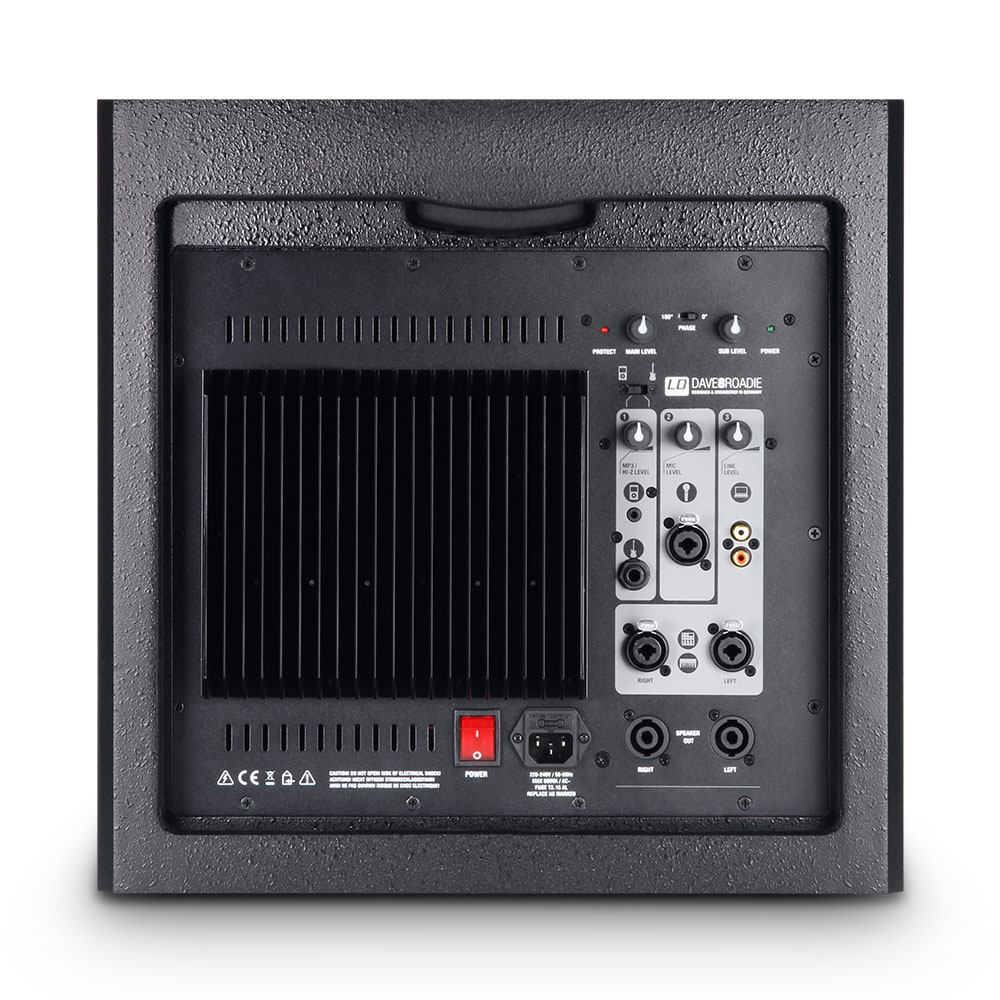

The DAVE 8 Roadie features three different inputs, which can be used simultaneously. One channel has a combo socket (XLR/jack) for dynamic microphones. One channel offers dual RCA connectors for computers as well as a combo socket (XLR/jack) for mixers or keyboards. Finally, the third channel has a 3.5 mm stereo and a 6.3 mm mono jack input for MP3 players or guitars with a switch for selecting the desired input. The high-performance Class A/B power amp module integrated in the subwoofer powers both the subwoofer and the satellites.

The systems features all of the usual protection circuits. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180Â°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.

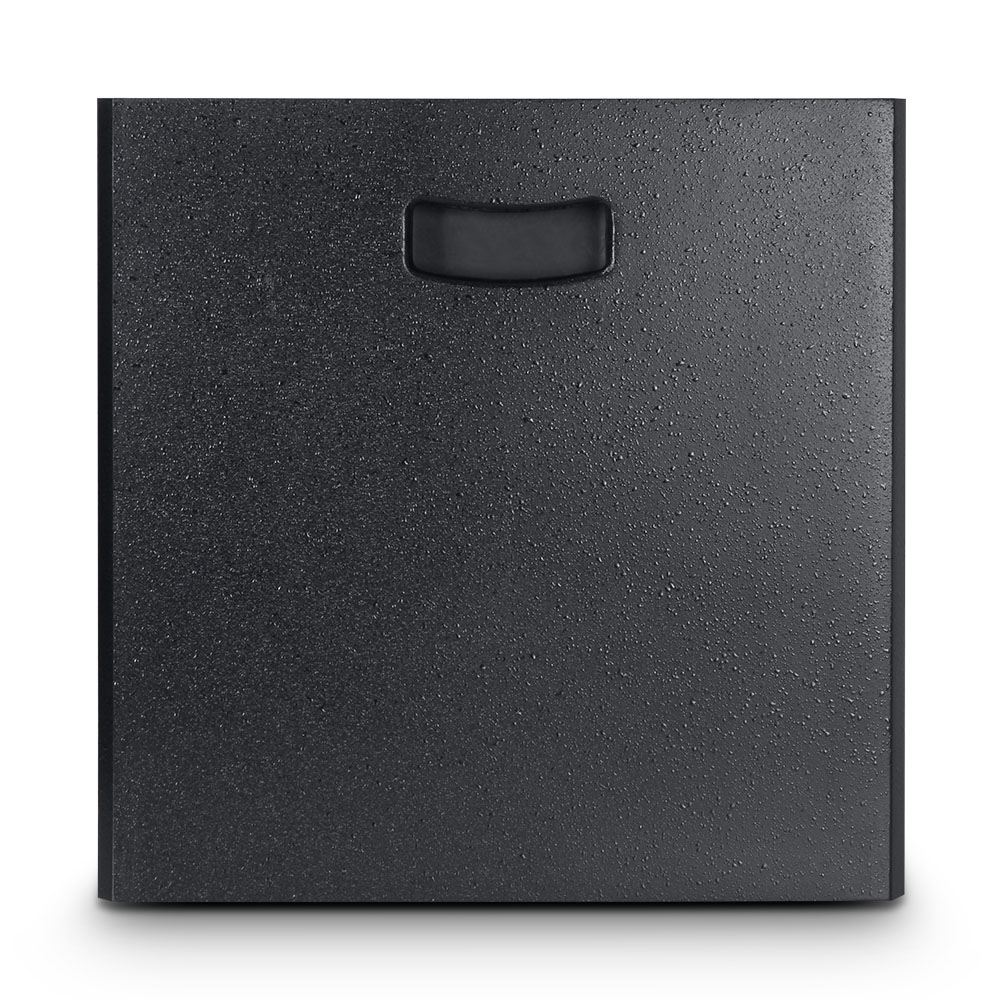

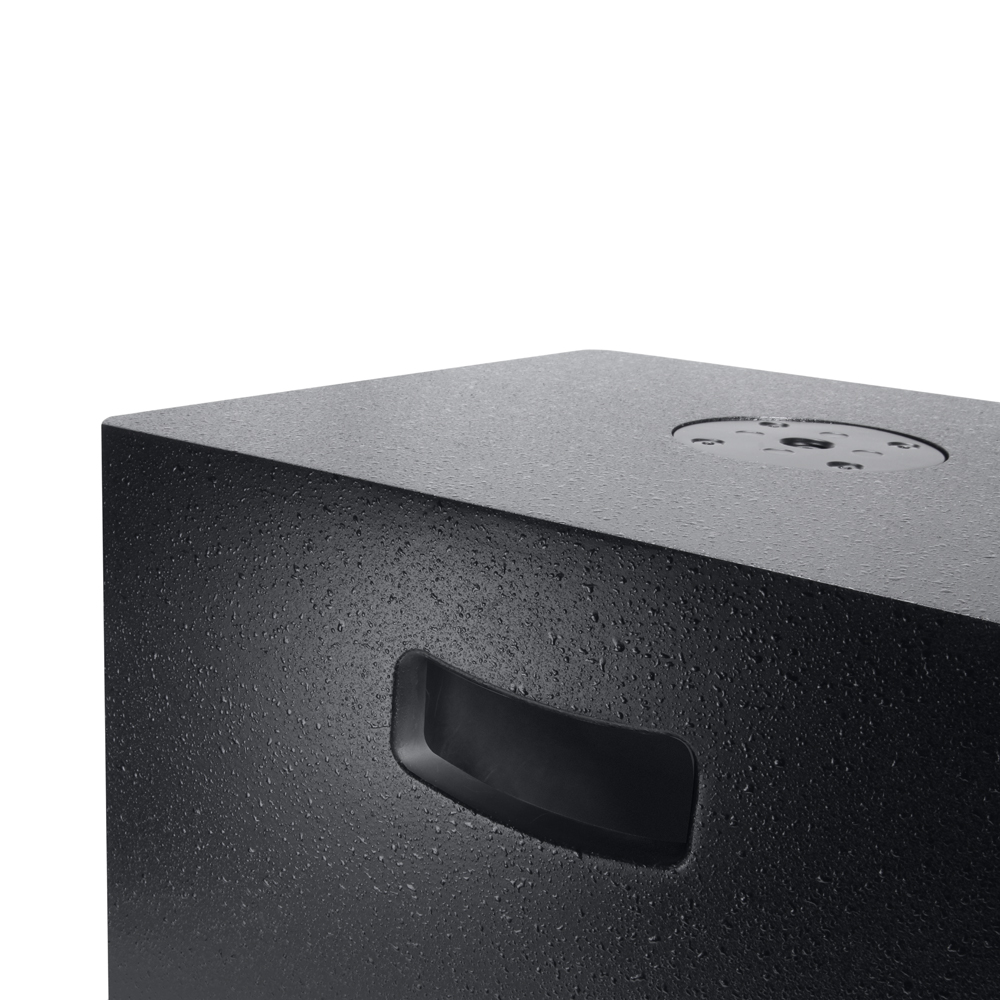

Sturdy front grilles and ergonomic handles on both the subwoofer and the satellites underscore the roadworthiness of the DAVE 8 Roadie and make the system an ideal companion for musicians.

Specifications

Product number: LDDAVE8ROADIE
Product type: PA Complete Systems
Colour: Black
Max. SPL (continuous): 117dB
Max. SPL (peak): 123dB
Frequency response: 45 – 19000Hz
Dispersion (H x V): 60 x 60Â°
Weight: 29.1kg

Subwoofer

Low/mid driver dimensions: 8″
Woofer size: 203mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 1.5″
Woofer voice coil (mm): 38.1mm
Cabinet construction: Bandpass
Cabinet material: MDF
Cabinet surface: painted
Subwoofer width: 352mm
Subwoofer height: 430mm
Subwoofer depth: 434mm

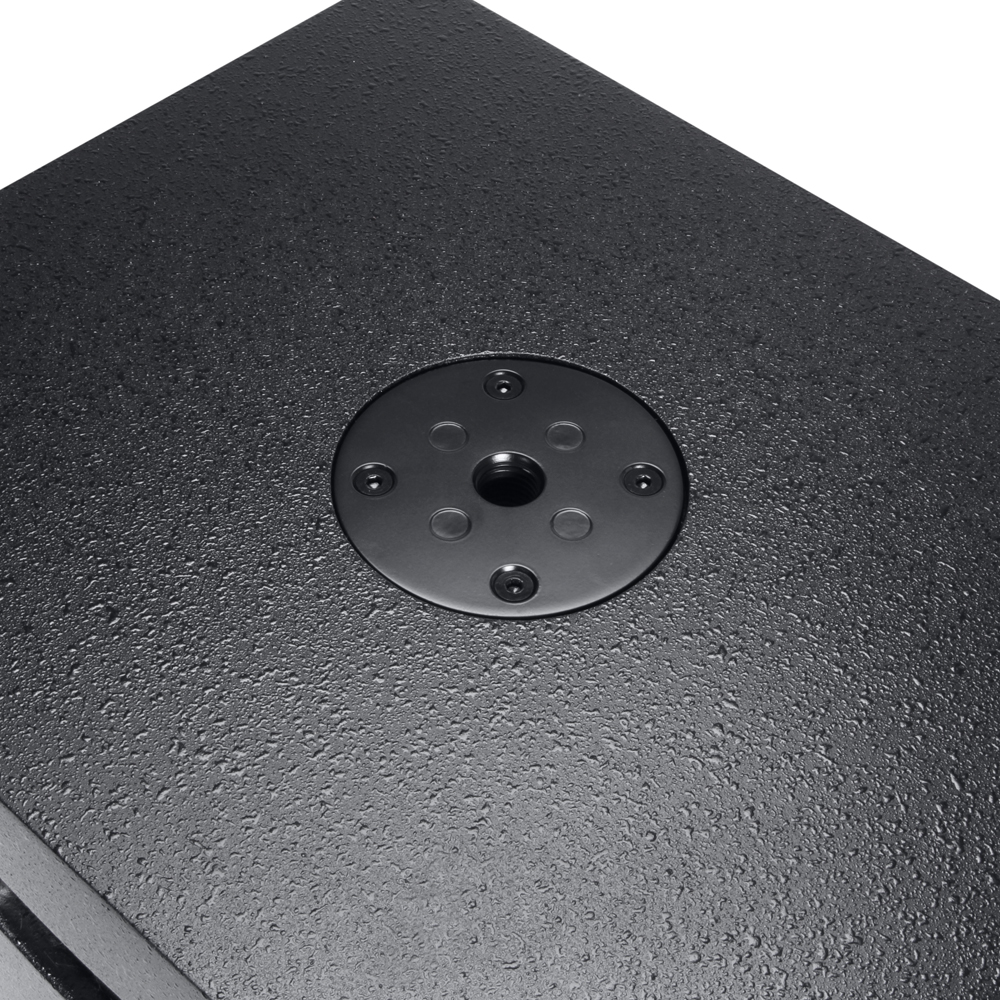

Subwoofer features: transport handle, threaded flange M20, limiter

Mid/Hi System

Midrange size: 2 x 4″
Midrange size: 2 x 101.6mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1″
Midrange voice coil: 25.4mm
Horn: radial
Tweeter dimensions: 1″
Tweeter dimensions (mm): 25.4mm
Tweeter magnet: Ferrite
Tweeter brand: Custom-made
Tweeter voice coil: 1″
Tweeter voice coil (mm): 25.4mm
Mid/Hi system impedance: 4Ohm(s)
Loudspeaker inputs: 1
Speaker input connections: Speakon compatible
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: MDF
Mid/Hi system cabinet surface: painted
Mid/Hi system width: 150mm
Mid/Hi system height: 350mm
Mid/Hi system depth: 170mm
Mid/Hi system weight: 4.2kg
Mid/Hi system features: metall front grille, transport handle, 16 mm flange

Amplifier module (integrated in subwoofer)

Amplifier: Class A/B
Amplifier output system (RMS): 350W
Amplifier output system (peak): 1400W
Protection circuits: limiter, over-current, short circuit
Cooling: heat sink
Controls: Main level, On / Off, Sub level, input switch (MP3 / Hi-Z), Line level, Subwoofer Phase Reverse, Mic level, MP3 / Hi-Z level
Indicators: Power, Protect (protection circuit engaged)
Operating voltage: 220 V AC – 240 V AC
Line inputs: 3
Line input connectors: 6.3 mm jack, XLR, RCA
Mic inputs: 1, XLR, 6.3 mm jack
MP3 inputs: 1
MP3 input connectors: 3.5 mm jack
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm jack
Loudspeaker outputs: 2
Speaker output connections: Speakon compatible
